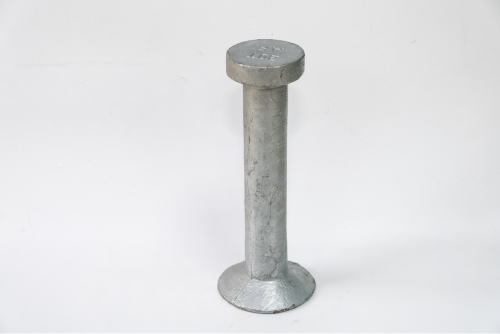

BaoQi lifting head anchor, intended for embedding along with a detachable recess former, serves the purposes of lifting, transportation, and handling.
Crafted from high-quality steel, BaoQi anchor head is forged to seamlessly accommodate a lifting clutch.
These BaoQi lifting head anchors adhere to the specifications outlined in the EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. They are meticulously designed and manufactured to meet the safety requirements associated with the lifting and handling of concrete elements.
BaoQi lifting head anchors Surface treatment options include plain, hot-dip galvanized, electro-galvanizing, or A4/A2 stainless steel.
For plain, hot-dip galvanized, and electro-galvanized variants, BaoQi lifting head anchors material is S355J2 in accordance with EN10025. For A4/A2 stainless steel, the material is 1.4301/1.4401 according to EN10088.
| ITEM NO. | Size | Dimensions(mm) | |||
| d | D1 | D2 | L | ||
| JLA013 | 1.3T | 10 | 19 | 25 | as request
(35to1200) |
| JLA025 | 2.5T | 14 | 26 | 35 | |
| JLA040 | 4T | 18 | 36 | 45 | |
| JLA050 | 5T | 20 | 36 | 50 | |
| JLA075 | 7.5T | 24 | 46 | 60 | |
| JLA100 | 10T | 28 | 46 | 70 | |
| JLA150 | 15T | 34 | 70 | 80 | |
| JLA200 | 20T | 38 | 70 | 98 | |
| JLA320 | 32T | 50 | 88 | 135 | |
