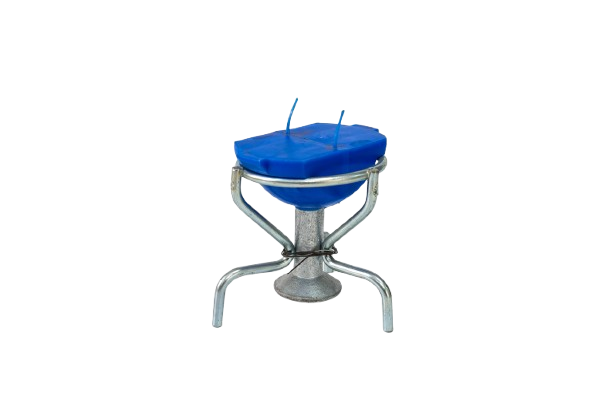

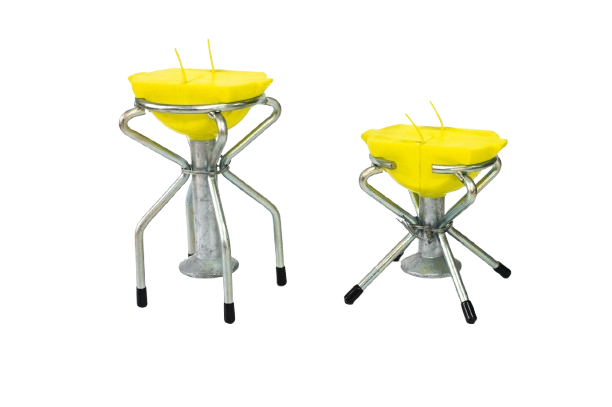

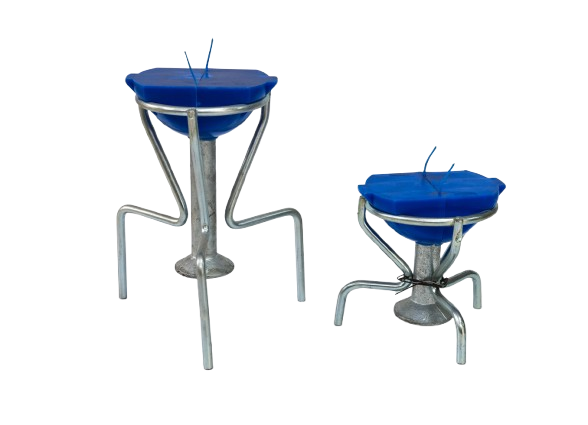

The Face Lift Insert features a unique robust wire chair to ensure performance under the harshest conditions. The Face Lift Insert is a 3/4” diameter component crafted from high-quality steel. The hot-forged head is securely engaged by the system hardware. This insert assembly includes a plastic void and a wire base that is protected with plastic. It can be easily positioned and tied to the rebar mat, requiring no special orientation for installation.
Functionality:
Premium Material: Manufactured from high-quality steel for exceptional strength and durability, ensuring long-lasting performance under rigorous conditions.
Hot-Forged Head: The sturdy, hot-forged head connects seamlessly with system hardware for reliable engagement.
Plastic Void and Protected Wire Base: Equipped with a plastic void and plastic-protected wire base to safeguard structural integrity and simplify installation.
Smart Design: Simplifies placement without requiring any special orientation and ties easily to the rebar mat for convenience and precision.
Applications:
The Face Lift Insert is perfect for a wide range of construction and industrial projects, including:
Precast panel lifting and handling
Tilt-panel construction applications
Ensuring safe and efficient workflow for large-scale projects
Advantages:
Effortless Installation: The intuitive design allows for quick and easy positioning, saving on setup time and labor costs.
Reliable Assembly: Engages securely with system hardware, offering peace of mind on every lift.
Versatility: No special orientation required, allowing for hassle-free integration into a variety of applications.
| ITEM NO. | Size | Dimensions(mm) | ||
| D | Ф | C | ||
| JFLI025100 | 2.5T-100 | 6.5 | 80 | 100 |
| JFLI025125 | 2.5T-125 | 6.5 | 80 | 125 |
| JFLI050150 | 5T-150 | 6.5 | 80 | 150 |
| JFLI050175 | 5T-175 | 6.5 | 80 | 175 |
| JFLI050200 | 5T-200 | 6.5 | 80 | 200 |
| JFLI050300 | 5T-300 | 6.5 | 80 | 300 |
| JFLI050350 | 5T-350 | 6.5 | 80 | 350 |
